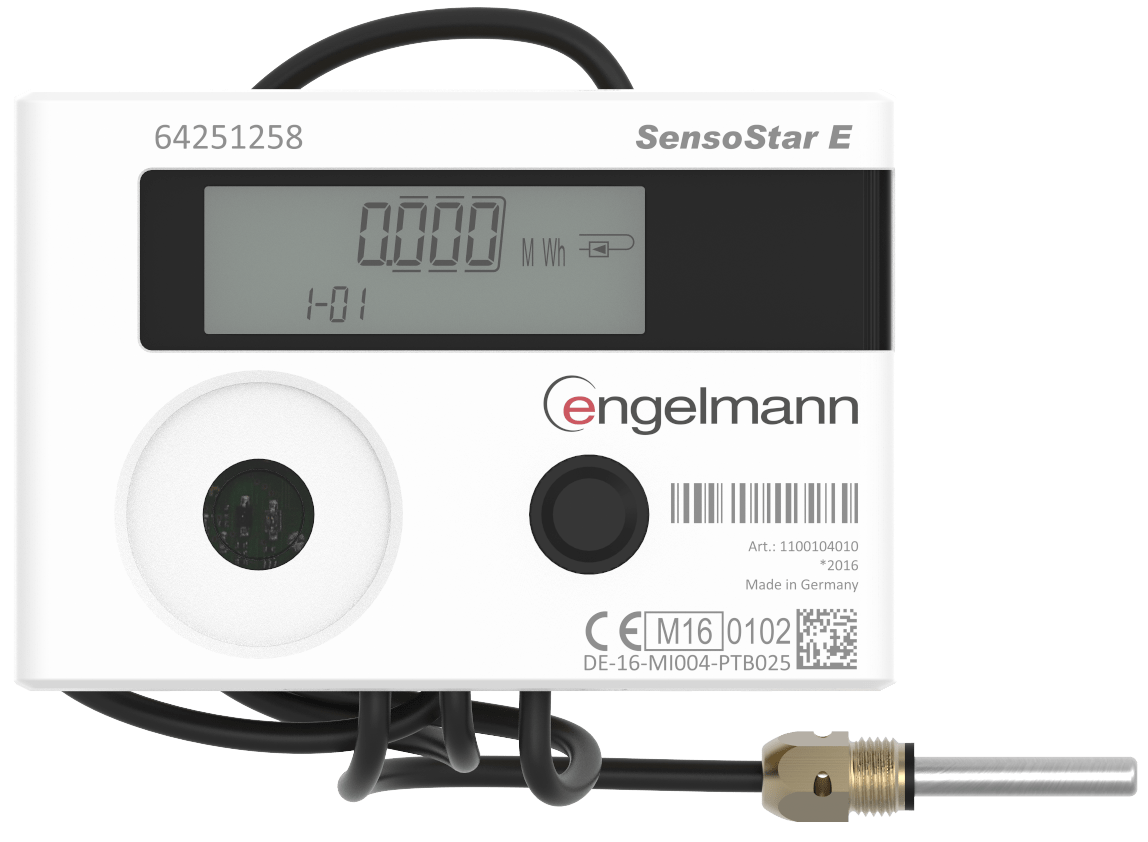

We present the SensoStar, the right solution for precise cold and heat measurement!

Thanks to its modular design, the SensoStar offers a variety of communication interfaces for maximum flexibility and reduced inventory costs.

The system connection is either wireless (wireless M-Bus, LoRa) or wired (M-Bus, Modbus, pulse output). In addition, up to 24 monthly and 24 semi-monthly values can be stored in the meter.

The cooling meter offers a high level of safety thanks to protection class IP65 and enables flexibility on site thanks to one-time adjustment of the installation location and the energy display, glycol type and concentration. The battery is easy to replace. If needed, monitoring can be done quickly with an optional external power supply.

Technically, the cooling meter offers flow sensors for all common installation points as well as precise measurements thanks to a 2/60s dynamic temperature measurement cycle. The temperature sensor variant offers a length of up to 6 meters and the housing can be opened. In addition, radio transmission and display of 15 monthly and 15 semi-monthly values in the compact telegram is possible.

SensoStar is the intelligent choice for advanced cold and heat measurement technology.
